型号 | 4冲程 |
燃料供应系统 | 化油器 |
艉板高度 | 15“ |
重量 | 14KG |
气缸数 | 1 |
排量 | 68cc |
气缸直径X行程 | 48X38mm |
最大输出 | 2.5hp/5500rpm |
最大转数范围 | 5250-5750rpm |
启动方式 | 手动 |
齿轮油 | .32 qts (.3 l) |
发电机 | N/A |
引擎安装 | 切换式安装 |
操作方式 | 手动倾斜 |
齿轮比 | 2.15:1 |
档位 | 前进-空挡 |
尾气排放 | 直排 |
螺旋桨选择 | 3 x 71/2 x 51/2 |
铃木(Suzuki) 4冲程 DF2.5P外观

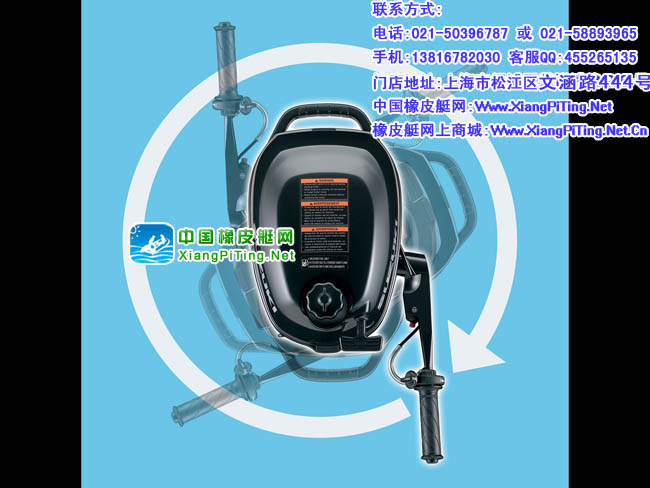

铃木(Suzuki) 4冲程 DF2.5P转向示意图
铃木(Suzuki) 4冲程 DF2.5P内部结构

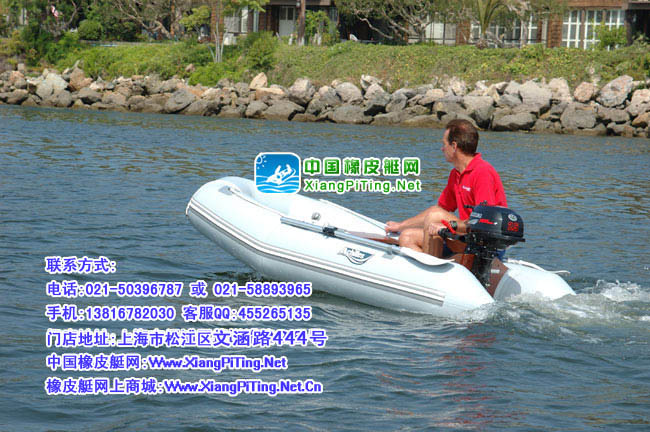

铃木(Suzuki) 4冲程 DF2.5P使用照片
2006年至今最小铃木四冲程舷外机DF2.5便携式舷外机,重量只有30磅,是有史以来最轻的四冲程发动机。自豪地是,DF2.5符合严格的美国环保署2006年和碳水化合物三星级超低排放标准。
Engine
A 2.5 HP single cylinder OHV 4-stroke engine, with 4.15 cu. in. displacement, generates plenty of power for small tenders and inflatables. It features easy-to-pull recoil starting with Suzuki Pointless Electronic Ignition. No battery is required for this remarkably simple and reliable system.
The DF2.5 engine runs quietly and smoothly, and is water-cooled, which promotes improved dependability. Its
integrated fuel tank holds nearly a quart of gas and it has an estimated run time of almost an hour on a full tank.
It is easy to check oil levels with the oil level indicator located on the port side. And you never have to mix oil and gas.
Handling
A tiller handle with full-size grip provides positive throttle control. An upper bushing in the steering collar promotes smooth, steady steering.
Steering & throttle tension can be easily adjusted by the operator. And there is F-N shifting (the shift lever is located on the starboard side, just where you’d expect), with 360° steering for maneuvering in tight quarters and better thrust when backing up.
Tilt And Carrying Handle
When you need to tilt the DF2.5 engine up, there is an easy-to-grip integrated handle located at the back of the engine cowling within convenient reach. And there are four tilt pin settings designed to match your individual boat and the prevailing conditions.
The fuel On/Off switch is on the starboard side, for easy access whether you’re starting or finishing engine operation. (Note: Always turn off fuel flow when not in use.)
Off the transom, the DF2.5 is balanced, lightweight and easy to manage, due to its large grip carrying handle. A special bracket extends when the engine is tilted up to prevent it from laying over on its side.
The New DF2.5. The Lightest Suzuki 4-stroke Ever.
Like all Suzuki 4-strokes, the DF2.5 is extremely reliable, meets emissions standards, requires very little maintenance, and it is easy to handle and stow.
The all-new Suzuki DF2.5 — Small in size. Big on performance.
A 2.5 HP single cylinder OHV 4-stroke engine, with 4.15 cu. in. displacement, generates plenty of power for small tenders and inflatables. It features easy-to-pull recoil starting with Suzuki Pointless Electronic Ignition. No battery is required for this remarkably simple and reliable system.
The DF2.5 engine runs quietly and smoothly, and is water-cooled, which promotes improved dependability. Its
integrated fuel tank holds nearly a quart of gas and it has an estimated run time of almost an hour on a full tank.
It is easy to check oil levels with the oil level indicator located on the port side. And you never have to mix oil and gas.
Handling
A tiller handle with full-size grip provides positive throttle control. An upper bushing in the steering collar promotes smooth, steady steering.
Steering & throttle tension can be easily adjusted by the operator. And there is F-N shifting (the shift lever is located on the starboard side, just where you’d expect), with 360° steering for maneuvering in tight quarters and better thrust when backing up.
Tilt And Carrying Handle
When you need to tilt the DF2.5 engine up, there is an easy-to-grip integrated handle located at the back of the engine cowling within convenient reach. And there are four tilt pin settings designed to match your individual boat and the prevailing conditions.
The fuel On/Off switch is on the starboard side, for easy access whether you’re starting or finishing engine operation. (Note: Always turn off fuel flow when not in use.)
Off the transom, the DF2.5 is balanced, lightweight and easy to manage, due to its large grip carrying handle. A special bracket extends when the engine is tilted up to prevent it from laying over on its side.
The New DF2.5. The Lightest Suzuki 4-stroke Ever.
Like all Suzuki 4-strokes, the DF2.5 is extremely reliable, meets emissions standards, requires very little maintenance, and it is easy to handle and stow.
The all-new Suzuki DF2.5 — Small in size. Big on performance.
