铃木(Suzuki) 4冲程 DF175-150P马力船外机/舷外机/船用发动机







铃木(Suzuki) 4冲程 DF175-150P参数表



铃木(Suzuki) 4冲程 DF175-150P外观





铃木(Suzuki) 4冲程 DF175-150P内部结构



铃木(Suzuki) 4冲程 DF175-150P内部结构2（两个引擎冲洗端口）

Salt, sand, and dirt can buildup in the engine’s cooling
system, causing damage over time. The DF150 and DF175
are equipped with two freshwater flush ports to make
flushing of the cooling system as convenient as possible.
One port located on the port side of the down housing and
a second located on the front panel provide easy access
and facilitate flushing of the system whether the boat is in
or out of the water.



铃木(Suzuki) 4冲程 DF175-150P内部结构3

Fuses protecting the
outboard’s electric system
are assembled into a single
fuse box located on the
side of the outboard motor.
This configuration offers
convenient access and
creates a clean exterior.



铃木(Suzuki) 4冲程 DF175-150P内部结构4

The motor tilt system incorporates a tilt limit switch
that prevents the motor from tilting beyond a predetermined
point. The system can be set by the user and can be
used to protect both the boat and motor from damage that
can occur when tilting the motor.

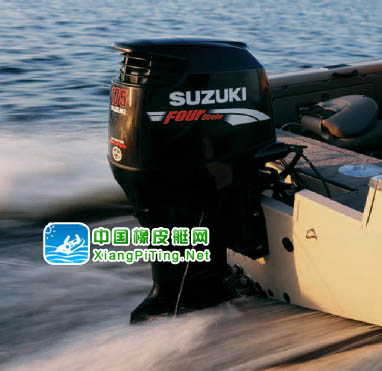

铃木(Suzuki) 4冲程 DF175-150P使用照片







 该机为４冲程发动机，新机没有加注４冲发动机机油，使用前需要按照说明书要求加注指定型号的４冲程发动机机油，如不加注机油机器可能会烧毁！！包装箱内没有单独的机油，机油需要另外购买。请使用者注意！
