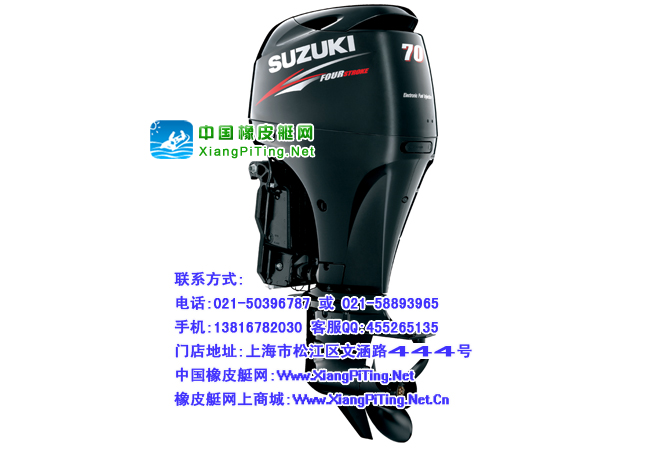

铃木(Suzuki) 4冲程 DF70HP马力船外机/舷外机

[日期：2012-07-24]

来源：橡皮艇网作者：橡皮艇

[字体：大中小]

机型:	DF70TL	Honda 75	Mercury 75	Yamaha 75
厂家:	Suzuki	Honda	Mercury	Yamaha
马力:	70	75	75	75
每缸汽门数:	N/A	3	4	4
准时\汽门驱动方式:	N/A	Belt	Belt	Belt
排汽量:	79.2 cu. in. (1298 cc)	1496cc, 91.4 cu. in.	1596cc, 97.4 cu. in.	1596cc, 97.4 cu. in.
轴长:	20	L20, X25	L20	L20
重量:	357	L 359	L386	L 369
润滑方式:	N/A	Wet Sump	Wet Sump	Wet Sump
缸数:	I-4	In-line 4 SOHC	In-line 4 DOHC	In-line 4 DOHC
点火方式:	Solid State Electronic Ignition	CDI	CDI	CDI Microcomputer
缸径X行程:	2.91 x 2.97 in. (74 x 75.5 mm)	N/A	N/A	N/A
转速范围:	5200-5800	5000-6000	4500-5000	5000-6000
最大转速RPM:	5800	6000	5000	6000
启动方式:	E Start w/ Suzuki EFI	Electric	Electric	Electric
机油量:	4.23 qt. (4.0 lit.)	N/A	N/A	N/A
充电:	12V 25A	35 A	20 A	25 A
起翘方式:	Power Trim	Power trim and tilt	Power trim and tilt	Power trim and tilt
汽油:	Unleaded	N/A	N/A	N/A
齿轮比:	2.42:1	2.33:1	2.33:1	2.31:1/13:30
排废:	N/A	Thru pop	Thru pop	Thru pop
橡胶浆衬保护:	Spline Drive Rubber Hub	N/A	N/A	N/A
标准浆轴:	Optional	N/A	N/A	N/A
可选螺距:	11-26	N/A	N/A	N/A
操纵方式:	Remote	N/A	N/A	N/A
排废:	N/A	3-Star Ultra-Low	3-Star Ultra-Low	3-Star Ultra-Low

Sequential EFI vs. carb
Computer diagnostic vs. none
Lighter weight: 359 lbs. vs. 386 lbs.
2.42:1 vs 2.33:1 Lower gear ratio to swing a larger prop for improved acceleration.
